GXTS40

1 Key Specifications

• Temperature Accuracy: ±0.2 °C
• Supply Voltage: 1.6 V ~ 5.5 V
• Average Current Consumption: 0.4 µA (1 conversion per second)
• Standby Current: 0.1 µA
• Resolution: 0.01 °C
• Operating Temperature Range: -40 °C ~ +125 °C
• Communication Interface: I²C, up to 1 MHz
• NIST Traceable
• Compliant with JEDEC JESD47

Package Information

2 Applications

• Industrial Control
• Smart Home
• Consumer Electronics
• Medical Devices

3 Product Overview

GXTS40 is a fully digital temperature sensor developed by Galaxy-CAS. It features configurable I²C addresses with multiple preset options and supports ultra-low power configurations.

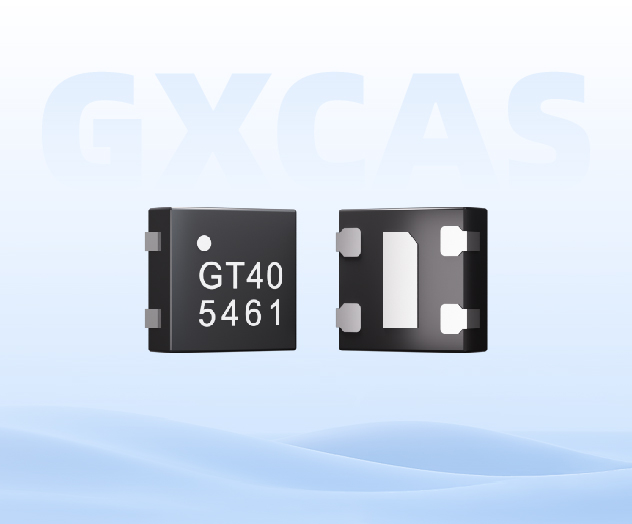

The GXTS40 comes in a 4-pin DFN4 package, which is cost-optimized and compatible with standard SMT assembly processes.

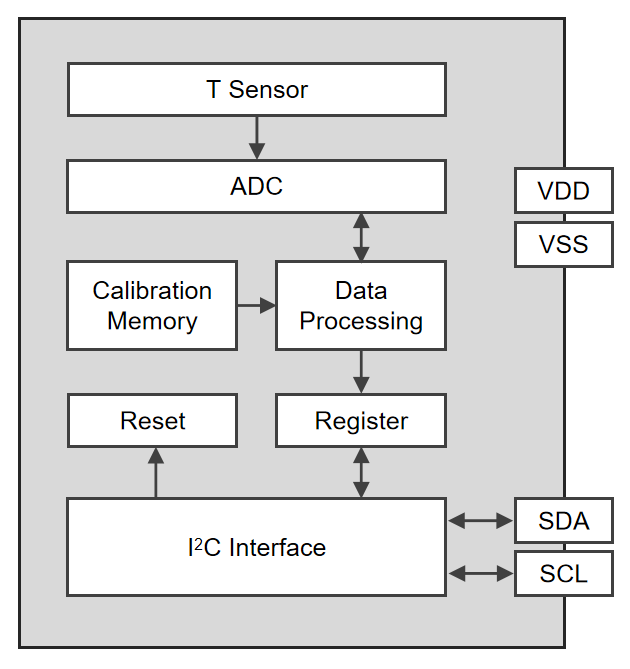

GXTS40 Series Functional Block Diagram
