GXC900

1 Features
• Complete front-end for high resolution applications
• 24 bits without missing code
• Internal amplifier, gain of 1-to-128
• Internal oscillator
• Internal LDOs
• Selectable 10, 40, 500, 1,000 (SPS) data rates • External voltage reference up to 5V for ratiometric measurements
• Simple, pin-driven control
• 2-wire serial interface (SPI or I²C) with power down function.
• Supply Range: 2.7V to 5.5V
• Temperature Range: –40°C to +105°C
• Package Information：

2 Applications
• Weigh Scales
• Strain Gauges
• Pressure Sensors
• Industrial Process Control
• Electronic Scales

3 Description

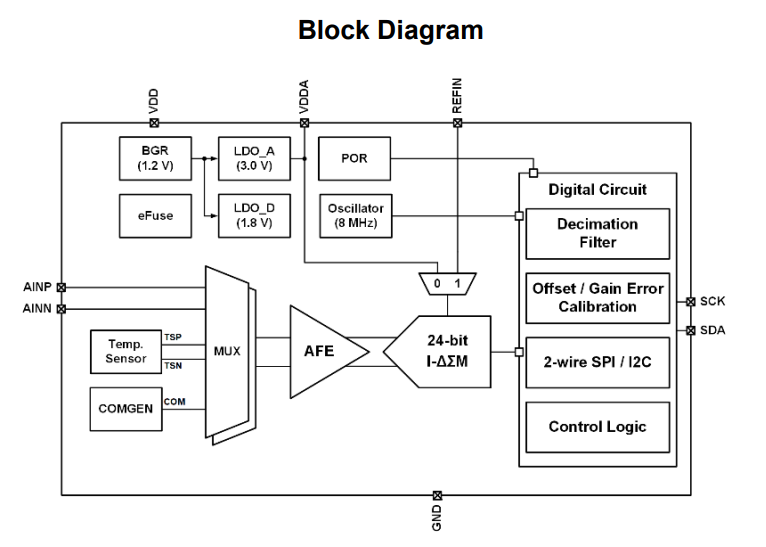

 The GXC900 is a precision, 24-bit analog-to-digital converter (ADC). With an onboard low-noise amplifier, onboard oscillator, precision second-order 24-bit delta-sigma (ΔΣ) modulator, the GXC900 provides a complete front-end solution for bridge sensor applications including weigh scales, strain gauges, and load cells.
The low-noise amplifier has a gain of 1/2/64/128, supporting a full-scale differential input of ±4.5V. The ΔΣ ADC has 24-bit resolution and is comprised of a second-order modulator and third-order digital filter.
Four data rates are supported: 10, 40, 500, and 1,000SPS. The GXC900 can be put in power down mode. The GXC900 is available in an SOP-8 package and is specified from -40°C to +105°C.
